| PART # | DESCRIPTION | MOUNTING PLATE |
|---|---|---|
| 2097 | Single Path Analog Heavy Duty | 2497 |
| 2219 | Dual Path Analog Heavy Duty | 2497 |
| 2543 | Single Path Analog Extreme Duty With Tank | 2530 |
| 2549 | Dual Path Analog Extreme Duty With Tank | 2530 |
| 2626 | Single Path Wireless (App Only) Heavy Duty | 2640 |
| 2630 | Dual Path Wireless (App Only) Heavy Duty | 2640 |
| 2631 | Dual Path Wireless (App Only) Extreme Duty With Tank | 2640 |
| 2633 | Dual Path Wireless (Remote & App ) Heavy Duty | 2640 |
| 2634 | Dual Path Wireless (Remote & App ) Extreme Duty With Tank | 2641 |
| 2639 | Single Path Wireless (Remote & App ) Heavy Duty | 2640 |
Firestone RED Label: 2706 Rear Kit
Manual Fill Kit - Air Compressor Sold Separately
See Compatible Air Accessories
PRODUCT NUMBER
W217602706
REPLACEMENT AIR SPRING
8873
PRODUCT NOTES
Get air springs that can stand up to the most demanding applications. Equip your RAM with a Red Label Air Spring Kit.
Available To Purchase Online
Where To Buy
Product Link
This page has been copied to your clipboard.
Details & Benefits
- High strength steel alloy brackets, commercial grade bellows and grade 8 fasteners, and enhanced bracket coating technology
- Designed to work in parallel with in-bed hitches
- No drill design
-
Fill kit
Manual
-
load capacity
7500lbs
-
installation
No Drill
-
in-bed hitch
Compatible
-
min. air pressure
5 PSI
-
max air pressure
150 PSI
-
install time
2.5 HOUR(s)
Air Accessory Systems
Vehicles Compatible with 2706
| RAM | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2500 4WD, 2WD (2014-2024)
4WD This kit will not work with vehicles with factory air assist2WD This kit will not work with vehicles with factory air assist
|

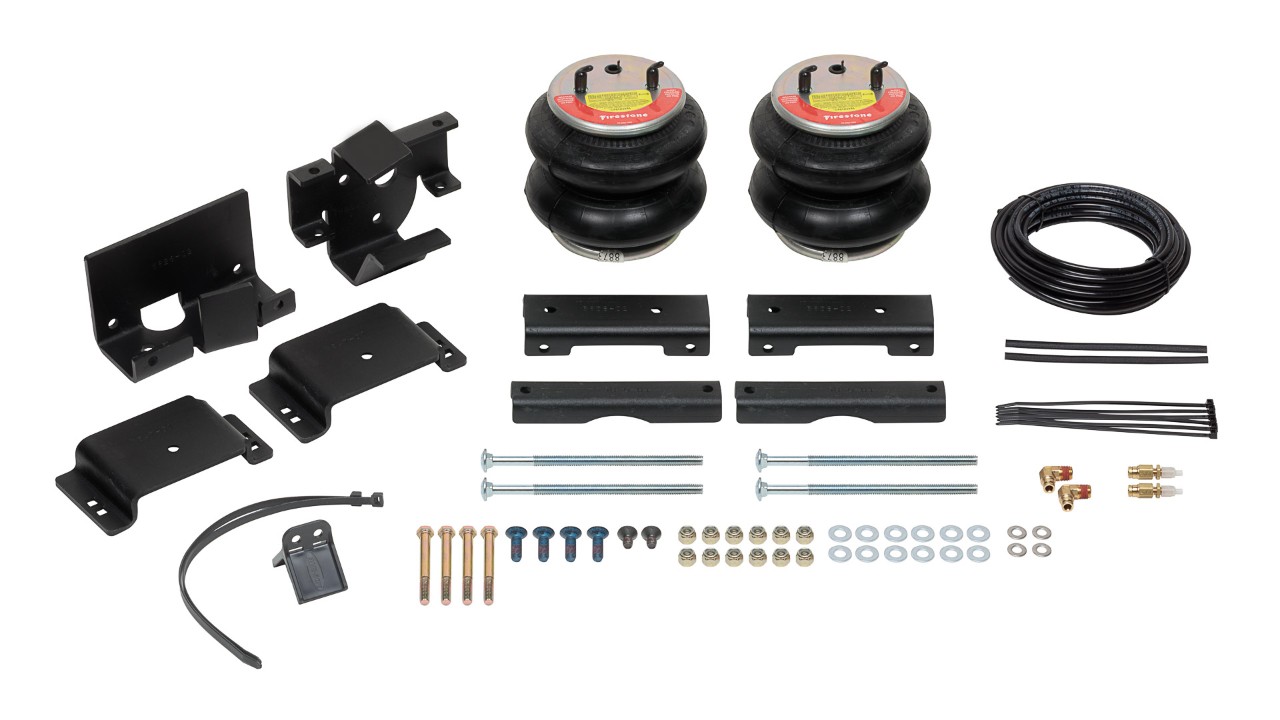

What's Included
Everything is included for a quick, easy installation.
- Firestone RED Label air springs
- Installation brackets
- Easy install guide
- Warranty information
- All hardware needed for install
Additional Info
Get comfort, confidence, and control on the way to your wildest ride. Firestone RED Label Extreme Duty air springs for 2WD/4WD RAM 2500s are engineered with commercial-level materials to withstand the hardest applications. When towing a heavy trailer or hauling an unbalanced load, you need air bags you can depend on for a responsive and comfortable on-the-road experience. You need a Firestone RED Label Kit.
Learn how it works. 2WD/4WD RAM 2500 Firestone RED Label Kits use two convoluted air springs to raise your truck back up to 2WD/4WD RAM's height while hauling or towing a heavy load. Air bags can be manually inflated and deflated to compensate for uneven loads.
Installation is straightforward. No drilling required. RED Label 2WD/4WD RAM 2500 air helper springs fit between your frame and suspension, and work with your existing rear suspension system. The average installation takes about 1.5 hours. Your kit comes with all materials, including 2WD/4WD RAM 2500 Firestone RED Label air springs, installation brackets, install guide, warranty information, and all necessary hardware. Compressors, air tanks, control panels, gauges, and switches can be purchased separately.
Why trust Firestone for 2WD/4WD RAM 2500 extreme duty air springs? Because your truck demands commercial-level durability. RED Label air springs use grade 8 fasteners, high strength steel alloy brackets, and an enhanced coating to safeguard against environmental aggressors like corrosive de-icing agents and road salt. The springs are made from the same rubber that's used in our Airide™ commercial air springs—four layers of it. What's more, 2WD/4WD RAM 2500 RED Label kits can level loads up to 6500 and handle up to 150 PSI.
Find an authorized RED Label retailer near you to buy your 2WD/4WD RAM 2500 RED Label Extreme Duty Air Spring Kit.
